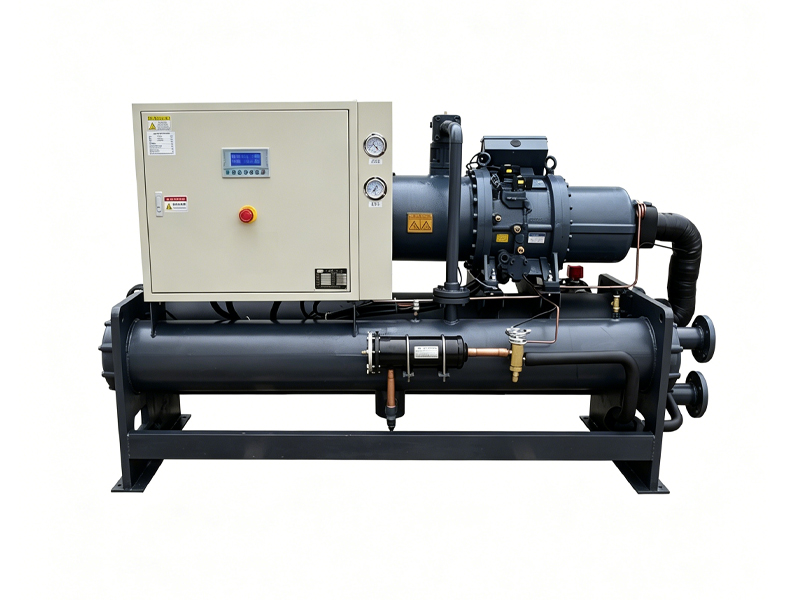

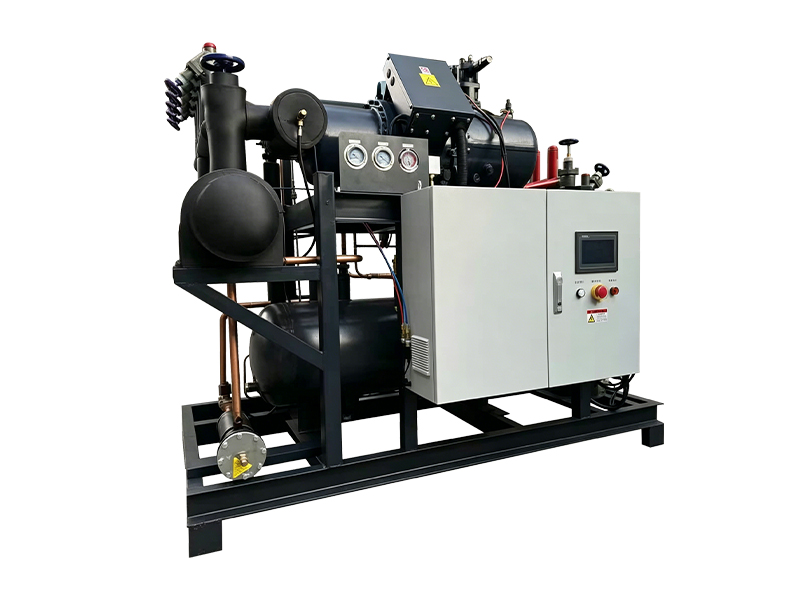

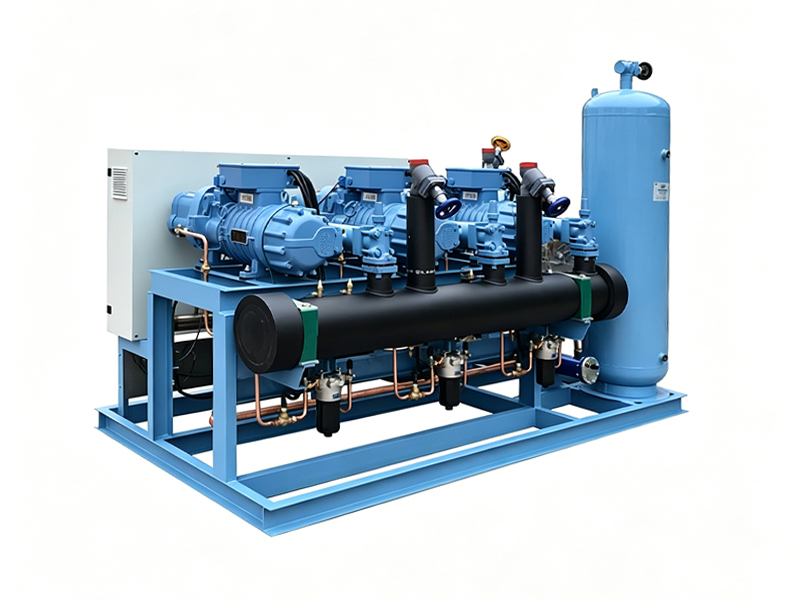

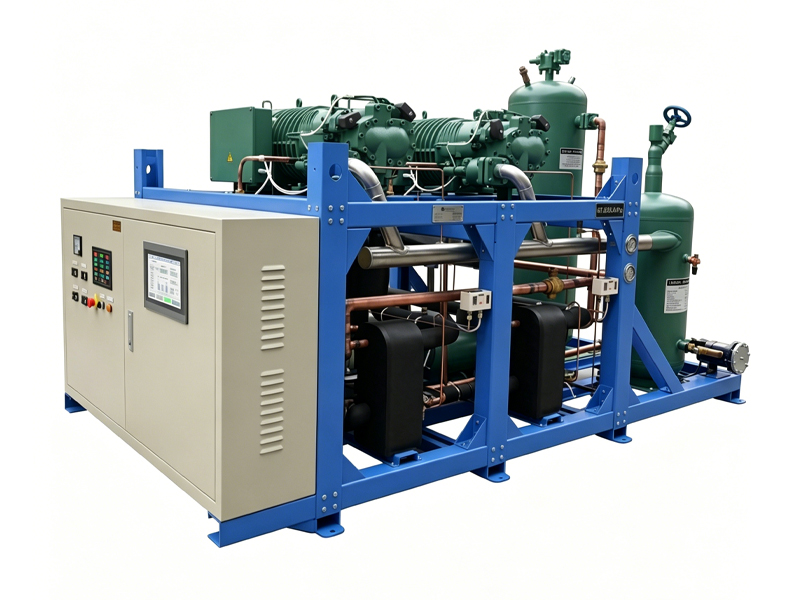

Screw condensing unit

Screw condensing unit

Screw condensing units are high-performance industrial refrigeration systems tailored for large-scale ultra-low temperature cooling and blast freezing. Equipped with high-quality screw compressors and robust structural parts, they feature stable operation and energy efficiency.

● Compressor Type: Screw Type

● Compressor Brand: Copeland, Panasonic, Bitzer, Emerson, etc

● Refrigerant: R404A

● Voltage: 380V/50Hz (Customized)

● Temperature Range: -30℃ ~ 60℃

WhatsApp Now

Product Overview

This series features reliable screw-type compressors suitable for ultra-low-temperature environments, ideal for rapid blast freezing. The units combine high-efficiency condensers, intelligent control systems, and full-set safety protection to ensure consistent performance, low energy consumption, and long service life under heavy-duty working conditions.

Advantages

Strong cooling capacity for large-scale and ultra-low-temperature projects
High energy efficiency reduces operating costs
Rugged structure for long service life
Easy installation and low maintenance
Certified quality for global market access

Required information for custom design

To provide an accurate solution and quotation, the following information is required:

Required cooling capacity and working temperature
Application: blast freezer, cold storage, or industrial cooling
Local voltage, frequency, and power supply
Installation environment (indoor / outdoor)
Preference for compressor brand
Special requirements for control or monitoring

Specifications

Model			CHXSDJ50DF	CHXSDJ75DF	CHXSDJ100DF
Compressor	Model		SDL-220E	SDL-330E	SDL-450E
	Single unit displacement at 50Hz/60Hz (m³/h) Air displacement		233/280	339/407	460/552
	Number of compressors		1	1	1
	Capacity control		50%~100%
Refrigeratingcapacity andpower	Evaporation at -60℃	Cooling capacity (kW)	25.59	37.23	50.52
	Evaporation at -60℃	Power (kW)	28.82	41.93	56.89
	Evaporation at -50℃	Cooling capacity (kW)	42.74	62.18	84.37
	Evaporation at -50℃	Power (kW)	34.45	50.12	68.01
	Evaporation at -40℃	Cooling capacity (kW)	67.03	97.52	132.33
	Evaporation at -40℃	Power (kW)	42.39	61.67	83.69
	Evaporation at -35℃	Cooling capacity (kW)	82.36	119.83	162.6
	Evaporation at -35℃	Power (kW)	47.19	68.63	93.13
	Evaporation at -30℃	Cooling capacity (kW)	100.09	145.63	197.61
	Evaporation at -30℃	Power (kW)	52.53	76.43	103.71
Applicable temperature (℃)			-30℃ ~ 60℃
Refrigerant			R404A
Power Supply			380V/50Hz/3Phase
Maximum operating current (A)			72.8	107.9	150.6
Electric control system			PLC HMI
Unit installation parameters	Liquid supply pipe diameter (mm)		42	42	54
	Return pipe diameter (mm)		76	89	108
	Refrigerant outlet (mm)		76	76	76
	Inlet pipe diameter (mm)		42	57	57
	Unit size (mm)		2400 * 1800 * 2100	2600 * 1800 * 2300	2600 * 1800 * 2300
Condenser	Form		High efficiency and energy saving evaporation type
	Fan power (KW)		3	4	3
	Pump power (KW)		1.1	1.5	1.5
	Air inlet (mm)		DN80	DN80 * 2	DN80 * 2
	Liquid outlet (mm)		DN50	DN65 * 2	DN65 * 2
	Overall dimension (mm)		1900 * 2500 * 3080	1900 * 2670 * 3480	1900 * 2670 * 3530

Application Scenarios

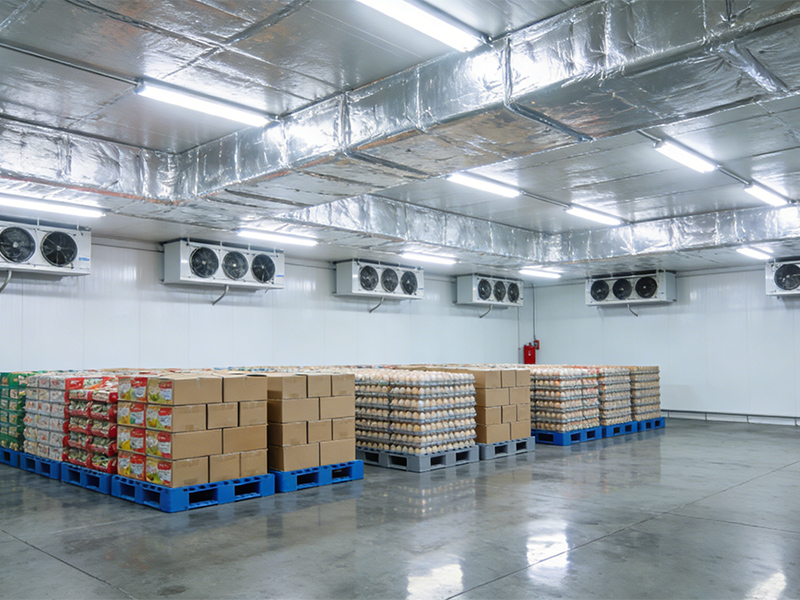

Cold Storage

High-efficiency condensing unit with stable cooling capacity, fast temperature drop and low energy consumption. Perfectly matches all kinds of fresh-keeping, freezing and constant-temperature cold storage, maintaining long-term stable operation and reliable storage effect.

Medical pharmaceutical storage

Precise temperature control, stable operation and high safety performance. Fully meets strict constant temperature storage requirements for vaccines, reagents and biological samples, with reliable performance to support pharmaceutical cold chain standards.

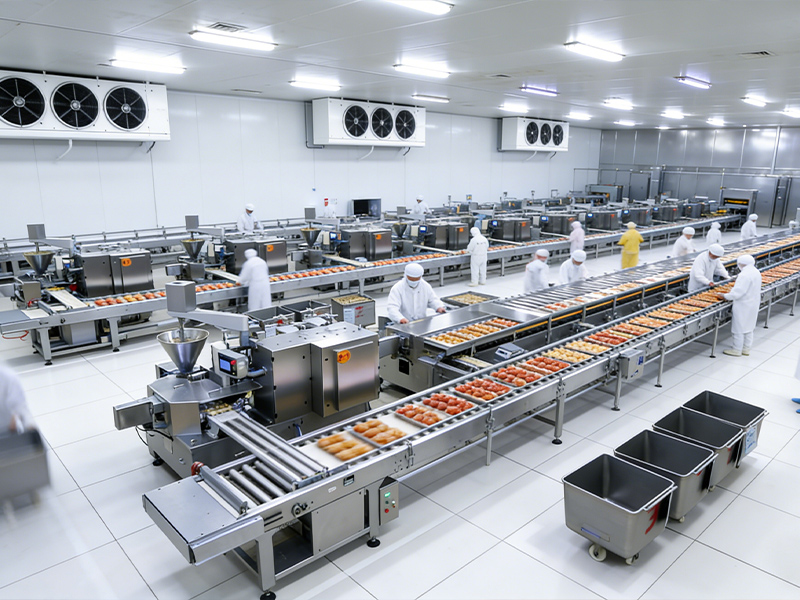

Workshop Cooling

Energy-saving and high-efficiency, strong heat dissipation performance, adaptable to harsh industrial environments. Effectively realizes workshop cooling, process temperature control and clean room constant temperature, stable and durable for long-time continuous operation.

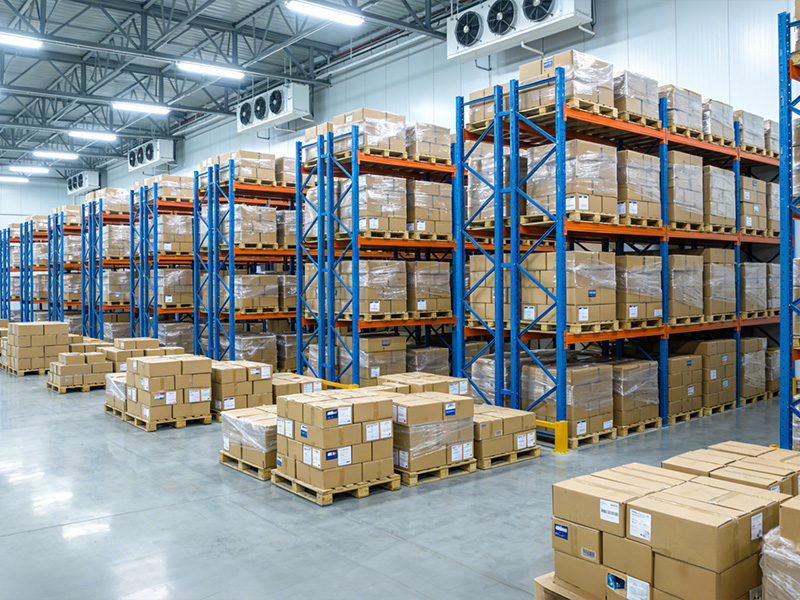

Logistics Cold Chain

Compact structure, easy installation and wide adaptability. Suitable for logistics transfer warehouses, mobile cold storage and container cold chain, featuring fast refrigeration, low failure rate and stable all-weather cold chain guarantee.

FAQ

Q: What applications is the screw condensing unit suitable for?

A: It is widely used in large cold storage, food processing factories, quick-freezing workshops, logistics cold chain warehouses, chemical refrigeration and industrial constant temperature projects, especially for heavy-duty and long-time continuous operation scenarios.

Q: Does the unit support customized voltage and refrigerant?

A: Yes. We can customize voltage and match mainstream refrigerants according to customer’s local standard and project demand.

Q: Is installation and commissioning complicated?

A: The unit is integrated and pre-assembled, with reserved interface for easy on-site connection. We provide detailed installation manual and technical guidance for commissioning.

Q: What regular maintenance does the unit need?

A: Regular cleaning of condenser dust, checking refrigerant leakage, lubricating oil inspection and electrical circuit troubleshooting. Simple daily maintenance can greatly extend equipment life.

Q: What after-sales support can you provide?

A: We provide professional technical consultation, installation guidance, spare parts supply and long-term after-sales maintenance service.
