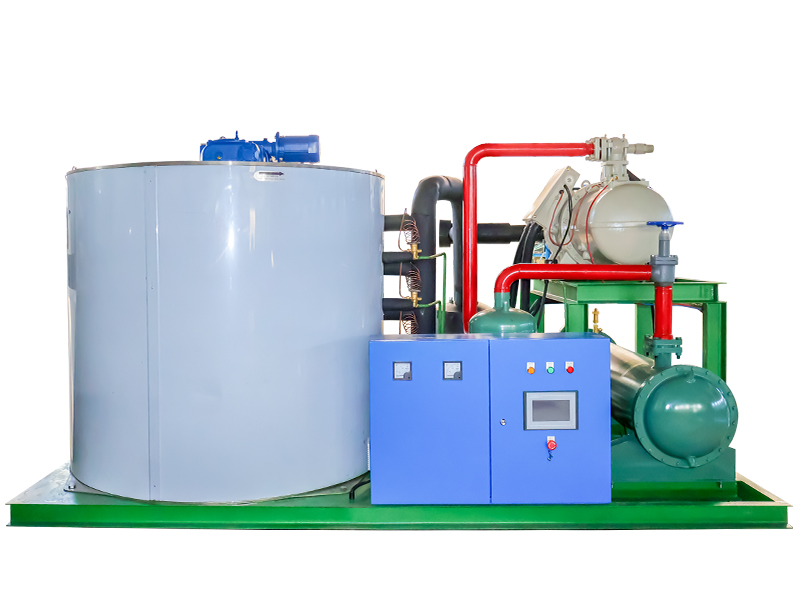

15-Ton Freshwater Flake Ice Machine
ICEMA-BMF150 is a heavy-duty industrial flake ice plant producing 15,000 kg of low-temperature flake ice per day. Purpose-built for concrete batching plants, large fishing harbors, and chemical reactors, it operates reliably in ambient temperatures up to 50°C. The machine produces ice at -8°C to -10°C with a dry, granular consistency that flows well in pneumatic lines and silos.
The BMF150 features a single large-diameter vertical evaporator drum driven by a cycloidal gearbox. The drum is fabricated from duplex stainless steel with a polished freezing surface to minimize wear. The entire evaporation section is enclosed in a stainless steel shroud with polyurethane foam insulation to prevent condensation and energy loss. The unit is floor-mounted and includes a service platform for safe maintenance access.
A multi-stage centrifugal pump draws from a bottom reservoir and feeds water to a circular spray ring. Water distributes evenly over the drum, and the refrigeration system maintains a suction pressure corresponding to an evaporating temperature of -30°C. The reamer knife-holder is equipped with stacked, individually replaceable tool steel blades set to a precise gap. Dried flake ice falls through a discharge chute that can be rotated in 90-degree increments to suit various plant layouts.

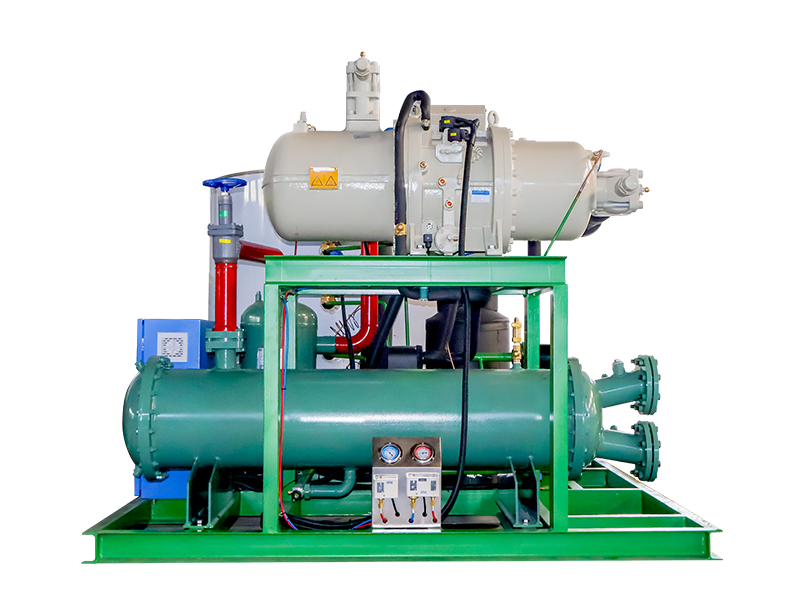

The refrigeration side employs an open-type Bitzer screw compressor with an economized cycle, matched to an evaporative condenser for minimum power consumption. The real-time control system monitors ice temperature via an IR sensor and adjusts drum rotation rate automatically to hold ice dryness within a target band. All motor starters and the PLC are housed in an IP65 cabinet with active cooling. The system includes an automatic water bleed-off to control mineral concentration. Power supply: 380V/50Hz/3P, It can also be customized according to the voltage standards of the customer's country.
| Model | Yield (T) | Cooling Capacity (kw) | Total Powe (kw) | Rated Current (A) | Ice Outlet Temperature (℃) | Compressor Power (kw) | Refrigerant | Condensation Method | Machine size L*W*H(mm) | Floor Space L*W*H(mm) |
| BMF50 | 5T | 35.0 | 17.8 | 35.7 | -8 | 14.5 | R22/R404A | Air/ Water-cooled | 2200*1500*1600 | 2500*2000*2700 |
| BMF80 | 8T | 53.8 | 29.2 | 58.5 | -8 | 24.6 | R22/R404A | Air/ Water-cooled | 2740*1900*1690 | 3500*2000*2700 |
| BMF100 | 10T | 65 | 34.7 | 69.4 | -8 | 31 | R22/R404A | Air/ Water-cooled | 2740*1900*1830 | 3500*2000*2700 |
| BMF150 | 15T | 95.2 | 49.6 | 99.2 | -8 | 44.8 | R22/R404A | Air/ Water/ Evaporative cooling | 2740*2100*2320 | 4000*3000*2700 |
| BMF200 | 20T | 133 | 64.6 | 129.3 | -8 | 57.2 | R22/R404A | Air/ Water/ Evaporative cooling | 2950*2100*2260 | 4000*3000*2700 |
| BMF250 | 25T | 165.7 | 87.7 | 175.4 | -8 | 78.5 | R22/R404A | Water/ Evaporative cooling | 2950*2100*2450 | 4000*3000*2700 |
| BMF300 | 30T | 185 | 93.5 | 187 | -8 | 84.3 | R22/R404A | Water/ Evaporative cooling | 4300*2100*2520 | 5000*3000*2700 |
| BMF350 | 35T | 228 | 124 | 248 | -8 | 111.5 | R22/R404A | Water/ Evaporative cooling | 4300*2100*2690 | 5000*3000*2700 |
| BMF400 | 40T | 260 | 168 | 336 | -8 | 156 | R22/R404A | Water/ Evaporative cooling | 4300*2100*2890 | 6000*3000*2700 |
Flake ice covers the surface of seafood and meat, cools down quickly in 5 minutes, and looks crystal clear to stimulate purchase desire.
Flake ice absorbs heat during mixing to precisely control the discharge temperature, replacing part of the mixing water and preventing cracks.
Fish fillets, shrimp, etc. are layered with flake ice to cool down to below 0℃ in the shortest time, inhibiting bacterial growth.
Small-batch rapid ice making for low-temperature transfer of biological samples or jacketed cooling of reactors.
