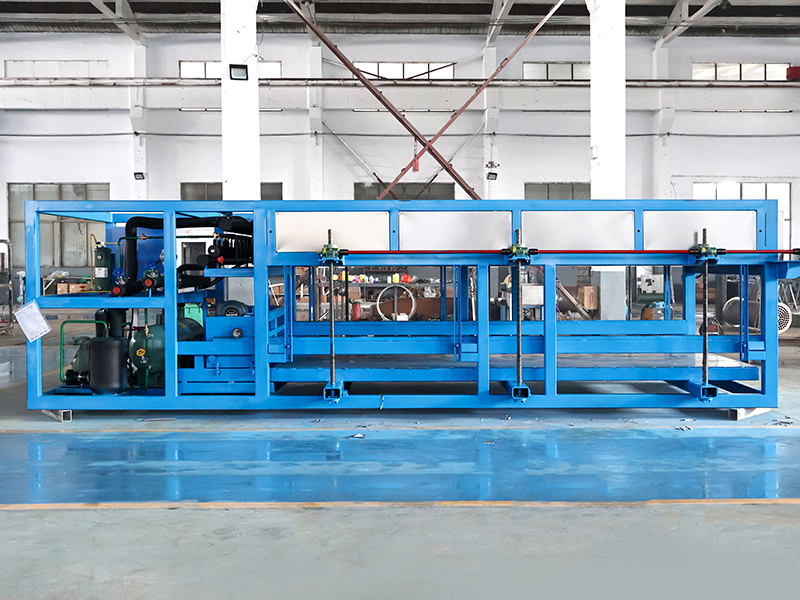

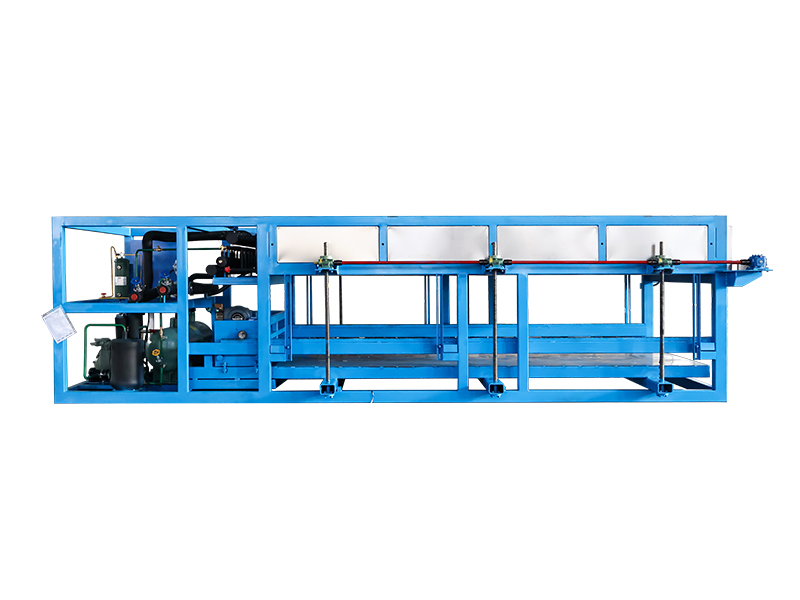

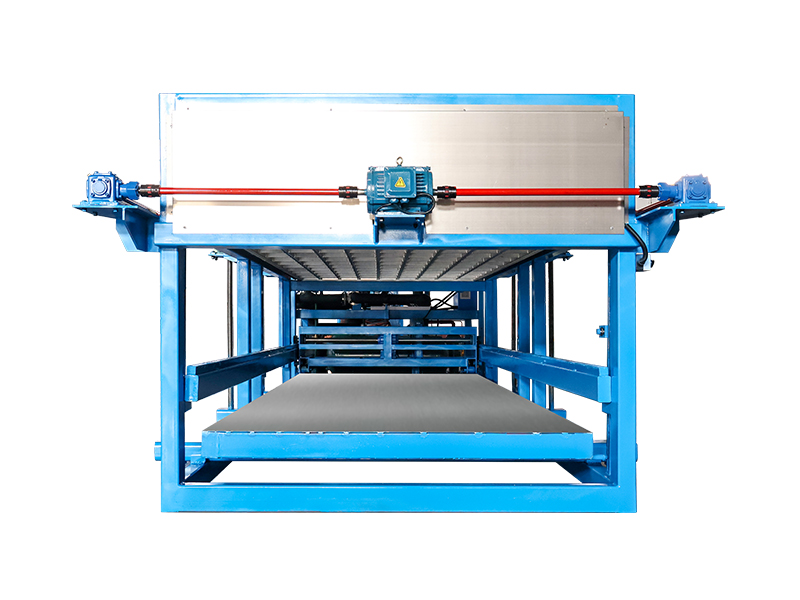

6-Ton Direct Cooling Block Ice Machine

thumb 6-Ton Direct Cooling Block Ice Machine

6-Ton Direct Cooling Block Ice Machine

ICEMA-BMB60 is a mid-capacity industrial block ice plant delivering 6,000 kg of solid, transparent ice every 24 hours. It adopts a direct cooling aluminum plate evaporator with an optimized hot-gas defrost system, sharply reducing energy consumption per ton of ice. The machine is specifically designed for medium-sized fish landing sites, poultry processing, and concrete cooling, where reliable, high-hardness block ice is a daily necessity.

WhatsApp Now

Product Overview

The BMB60 bridges the gap between modular stand-alone units and large central ice plants. Its evaporator is constructed from food-grade aluminum alloy plates with a special anti-corrosion treatment suitable for mild saline air. The refrigeration system employs a single screw compressor matched with a water-cooled shell-and-tube condenser, ensuring a stable condensing temperature even at 45°C ambient, making it suitable for tropical coastal regions.

Working Principle

Water is introduced into multiple vertically arranged ice-forming cells. Refrigerant flows in the jackets of these direct-expansion plates, extracting heat evenly and forming clear blocks free of air bubbles. At the end of the freeze cycle, a high-efficiency hot-gas defrosting circuit rapidly releases the blocks. The entire process—fill, freeze, harvest, and drain—is automated and adjustable via a digital cycle timer, minimizing operator intervention.

Advantages

The BMB60 features a dual-mode operating logic: "speed mode" for maximum output during peak demand, and "eco mode" that extends freeze time slightly to raise suction pressure, cutting kWh per ton. Siemens PLC with touchscreen provides error diagnostics and energy monitoring. The machine includes a built-in cold-water pre-cooling coil that uses defrost waste water to pre-chill incoming water, recovering up to 12% of energy. Standard power is 380V/50Hz/3P, It can also be customized according to the voltage standards of the customer's country.

Specifications

Model	Yield (T)	Cooling Capacity (kw)	Total Power (kw)	Rated Current (A)	Ice Outlet Temperature (℃)	Compressor Power (kw)	Refrigerant	Condensation Method	Machine size LWH (mm)	Floor Space LWH (mm)
BMB10	1T	9.5	6.5	11.7	-8	5.6	R22/R404A	Air/Water-cooled	244015301970	244015301970
BMB20	2T	14	7.7	14.3	-8	6.43	R22/R404A	Air/Water-cooled	415016502480	415016502480
BMB30	3T	21.5	11	21.4	-8	9.74	R22/R404A	Air/Water-cooled	500018002480	500018002480
BMB50	5T	35.9	18	35.6	-8	16.2	R22/R404A	Air/Water-cooled	570022002480	570022002480
BMB80	8T	56.7	30.7	61.4	-8	27	R22/R404A	Water/Evaporative cooling	630022002480	630022002480
BMB100	10T	77.3	37.5	75	-8	33.7	R22/R404A	Water/Evaporative cooling	645023602530	645022002530
BMB120	12T	85	41.35	82.7	-8	37.3	R22/R404A	Water/Evaporative cooling	710023502690	900022502530
BMB150	15T	106.8	59.3	116.6	-8	49.3	R22/R404A	Water/Evaporative cooling	867027502690	1160022502530
BMB200	20T	147	85.8	170.6	-8	75.1	R22/R404A	Water/Evaporative cooling	896032502690	★1249027502530
BMB250	25T	210	92.4	184.8	-8	83.2	R22/R404A	Water/Evaporative cooling	1140032502690	★1390030002530
BMB300	30T	230.8	107	214	-8	92	R22/R404A	Water/Evaporative cooling	1295032502690	★1630030002530
								Ice mold size	3801801000	450165800

Application Scenarios

Ocean fishing/port aquatic wholesale

Large block ice melts slowly, maintaining low temperatures in fishing holds or trading pools for 3~5 days, suitable for centralized ice use on ships or docks.

Food processing workshop environmental cooling

Place large ice blocks in the workshop during summer to continuously cool using high latent heat, with no wind chill, suitable for meat processing plants and dairy factories.

Concrete dam pouring temperature control

Crush large ice blocks into ice shavings during mixing; large blocks are easy to transport and store, with high direct cooling efficiency to meet the ice demand for engineering volumes.

Storage of vegetables/fruits pre-cooling

Block ice combined with cold fans is used for rapid pre-cooling in the field to prevent respiratory heat accumulation.

FAQ

Q: What ice size can the direct cooling block ice machine produce?

A: Customizable ice block sizes are available according to customer demands. Common specifications cover 5kg, 10kg and 20kg blocks. Hard and transparent ice fits seafood transport and cold storage application scenarios.

Q: Is the direct cooling block ice machine easy to install and maintain?

A: The machine adopts an integrated structure for convenient on-site installation. Few vulnerable spare parts are equipped. Regular cleaning of water system and condenser can effectively extend the unit’s service life.

Q: What water quality is required for the direct cooling block ice machine?

A: Clean tap water or well water can be used. Proper water filtration equipment is recommended to reduce impurities. Good water quality avoids scaling inside ice molds and guarantees long-term stable ice production efficiency.

Q: What are the core advantages of a direct cooling block ice machine compared with a traditional brine block ice machine?

A: 1. Energy-saving and power-efficient: No intermediate heat exchange loss, with power consumption of only 50-65 kWh per ton of ice, saving about 30% more electricity than brine machines;
2. Smaller footprint: No need to build a brine pool. The whole machine adopts a modular design, cutting the installation floor area by more than half and allowing flexible relocation;
3. Labor-saving: Fully automatic ice making, ice harvesting and ice moving. Only 1 to 2 workers are needed to manage the entire ice plant, with no manual ice fishing or mold pouring required;
4. Clean and eco-friendly: No brine corrosion or chemical medium pollution. The ice is edible, and the equipment produces no waste liquid discharge;
5. Easy maintenance: Simplified structure without cumbersome maintenance work such as brine pool pipeline rust prevention and brine proportioning adjustment.
